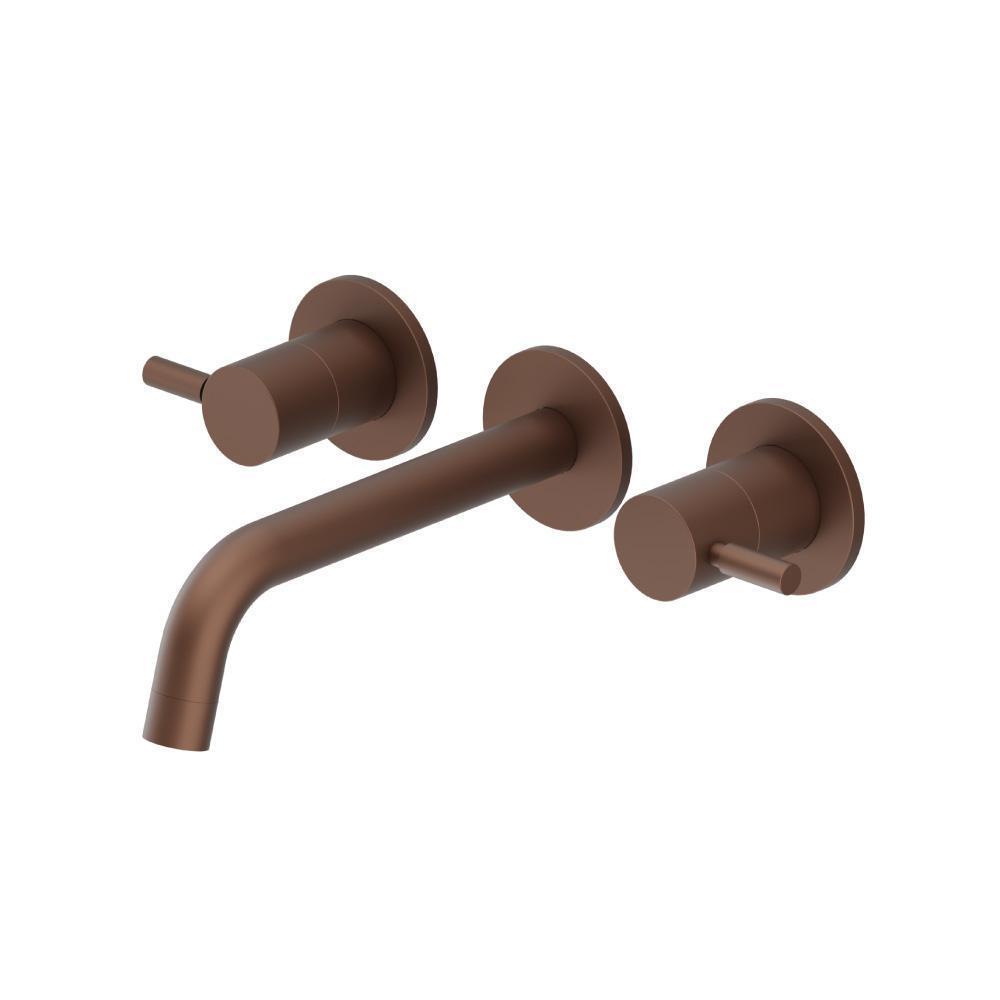

Two Handle Wall Mounted Bathroom Faucet
Model#: 100.1950VB - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Includes Rough In Valve - WLM.1900
- Separate Hot And Cold Handles
- Extension Available - Part # 100.1950E**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Vortex Brown ( SPECIAL FINISH ) - 8 Week Lead Time - List Price USD956.00
PRODUCT BREAKDOWN:
This product is a 1/2” NPT connection valve and trim combo with two volume control handles separately for hot and cold water with single mixed output.
Handle Operation – The volume and temperature of the water are controlled by the two handles, HOT and COLD.
Valve Installation – As the valve [Part # WLM.1900] is installed, care should be taken to maintain a proper distance from the back of the valve to the surface of the finished tile which should be between 2.39” and 3.09”. Also, the valve must be installed horizontally and not at an angle. In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure the proper setting of the trim. Extension kits can be ordered separately in Chrome, Brushed Nickel, or other special finishes.
Cut Out Dimensions – The cut out in wall should be 3 holes, 1.3 inches in diameter which will properly be covered by the trim plates. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims – The trims comprise of well-finished handle knobs, handle trims, cartridge covers, and spout. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Handle Operation – The volume and temperature of the water are controlled by the two handles, HOT and COLD.
Valve Installation – As the valve [Part # WLM.1900] is installed, care should be taken to maintain a proper distance from the back of the valve to the surface of the finished tile which should be between 2.39” and 3.09”. Also, the valve must be installed horizontally and not at an angle. In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure the proper setting of the trim. Extension kits can be ordered separately in Chrome, Brushed Nickel, or other special finishes.
Cut Out Dimensions – The cut out in wall should be 3 holes, 1.3 inches in diameter which will properly be covered by the trim plates. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims – The trims comprise of well-finished handle knobs, handle trims, cartridge covers, and spout. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 100 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| 100.1950CP | Chrome | USD752.00 |
| 100.1950BN | Brushed Nickel PVD | USD784.00 |
| 100.1950MB | Matte Black | USD827.00 |
| 100.1950SB | Satin Brass PVD | USD827.00 |
| 100.1950BB | Brushed Bronze PVD | USD827.00 |
| 100.1950LV | Light Verde | USD956.00 |
| 100.1950SG | Steel Grey | USD956.00 |
| 100.1950DT | Dark Tan | USD956.00 |
| 100.1950DGR | Dark Green | USD956.00 |
| 100.1950RG | Rock Grey | USD956.00 |
| 100.1950LT | Light Tan | USD956.00 |
| 100.1950IG | Flusso Green | USD956.00 |
| 100.1950VB | Vortex Brown | USD956.00 |
| 100.1950DR | Deep Red | USD956.00 |
| 100.1950GMG | Gun Metal Grey | USD956.00 |
| 100.1950AG | Army Green | USD956.00 |
| 100.1950DG | Dark Grey | USD956.00 |
| 100.1950LG | Leaf Green | USD956.00 |
| 100.1950NB | Navy Blue | USD956.00 |
| 100.1950GB | Gloss Black | USD956.00 |
| 100.1950BP | Blue Platinum | USD956.00 |
| 100.1950SKB | Sky Blue | USD956.00 |
| 100.1950CR | Crimson | USD956.00 |
Product Docs:
Spec
Sheet
Installation VideoProduct Info:
| ADA Compliant | Yes |
| Material | Brass |
| Valve Included | Yes |
| Installation Type | Wall Mounted |
| Extensions Available | Yes |
| Connection Size | 1/2" Female |
| Flow Rate | 1.2 GPM @ 60 PSI |
| Drain Assembly | Not Included |
| Hot Side Cartridge | 160.1900-18058 |
| Cold Side Cartridge | 160.1900-18057 |
| Handle Style | Lever |
