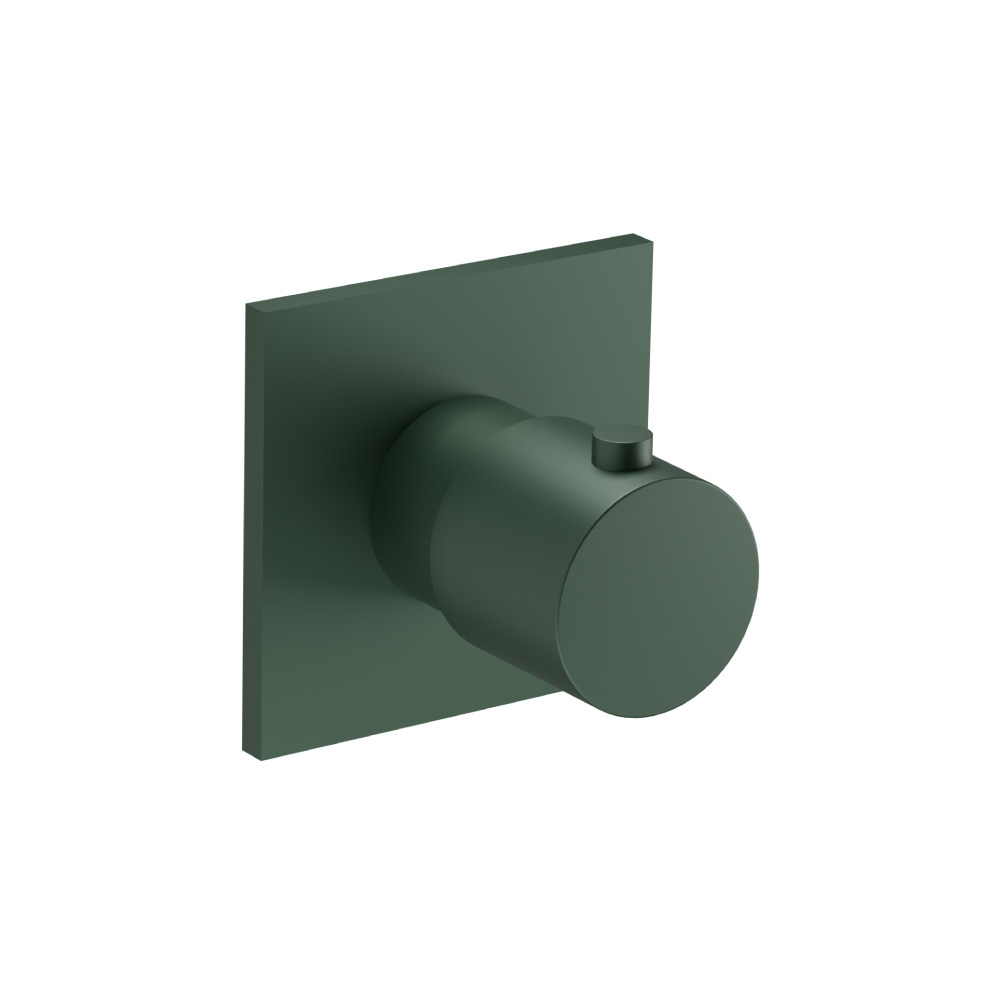

3/4" Volume Control & Trim
Model#: 100.4511LG - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Includes Valve - TVH.4511
- Extensions Available - TVH.E137**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Leaf Green (SPECIAL FINISH) - 8 Week Lead Time - List Price USD 408.00
PRODUCT BREAKDOWN:
The TVH.4511 is a 3/4" NPT female connection volume control valve with single output.
Handle Operation – The handle is used to control volume of water flowing through the valve. It can be used to set the water to a trickle all the way to full volume flow. This valve does not provide any temperature regulation.
Valve Installation – As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77″ and 3.44″. Also, the valve must be installed vertical and not at an angle. In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4511 valve is 1.40″ inches).
Cut Out Dimensions – The cut out in wall should be 1.65″ X 1.65″ inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims – The trims comprise of well finished trim plate and volume control handle knob. The trim plate is used to cover the wall and has markings for ON/OFF for water flow. Any *4511 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Handle Operation – The handle is used to control volume of water flowing through the valve. It can be used to set the water to a trickle all the way to full volume flow. This valve does not provide any temperature regulation.
Valve Installation – As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77″ and 3.44″. Also, the valve must be installed vertical and not at an angle. In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4511 valve is 1.40″ inches).
Cut Out Dimensions – The cut out in wall should be 1.65″ X 1.65″ inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims – The trims comprise of well finished trim plate and volume control handle knob. The trim plate is used to cover the wall and has markings for ON/OFF for water flow. Any *4511 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 100 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| 100.4511CP | Chrome | USD316.00 |
| 100.4511BN | Brushed Nickel PVD | USD334.00 |
| 100.4511MB | Matte Black | USD360.00 |
| 100.4511SB | Satin Brass PVD | USD348.00 |
| 100.4511BB | Brushed Bronze PVD | USD348.00 |
| 100.4511DR | Deep Red | USD408.00 |
| 100.4511LG | Leaf Green | USD408.00 |
| 100.4511DT | Dark Tan | USD408.00 |
| 100.4511GMG | Gun Metal Grey | USD408.00 |
| 100.4511LT | Light Tan | USD408.00 |
| 100.4511NB | Navy Blue | USD408.00 |
| 100.4511FG | Flusso Green | USD408.00 |
| 100.4511AG | Army Green | USD408.00 |
| 100.4511VB | Vortex Brown | USD408.00 |
| 100.4511LV | Light Verde | USD408.00 |
| 100.4511DGR | Dark Green | USD408.00 |
| 100.4511CR | Crimson | USD408.00 |
| 100.4511RG | Rock Grey | USD408.00 |
| 100.4511DG | Dark Grey | USD408.00 |
| 100.4511BP | Blue Platinum | USD408.00 |
| 100.4511SKB | Sky Blue | USD408.00 |
| 100.4511SG | Steel Grey | USD408.00 |
| 100.4511GB | Gloss Black | USD408.00 |
Product Docs:
Spec
Sheet Product Info:
| Volume Control Cartridge | TVH.4511-9853 |
| Flow Rate | 13 GPM @ 60 PSI |
| Output Ports | 1 |
| Connection Size | 3/4" Female |
| Integrated Volume Control | Yes |
| Valve Included | Yes |
| Extensions Available | Yes |
| Material | Brass |
| Handle Style | Knob |
