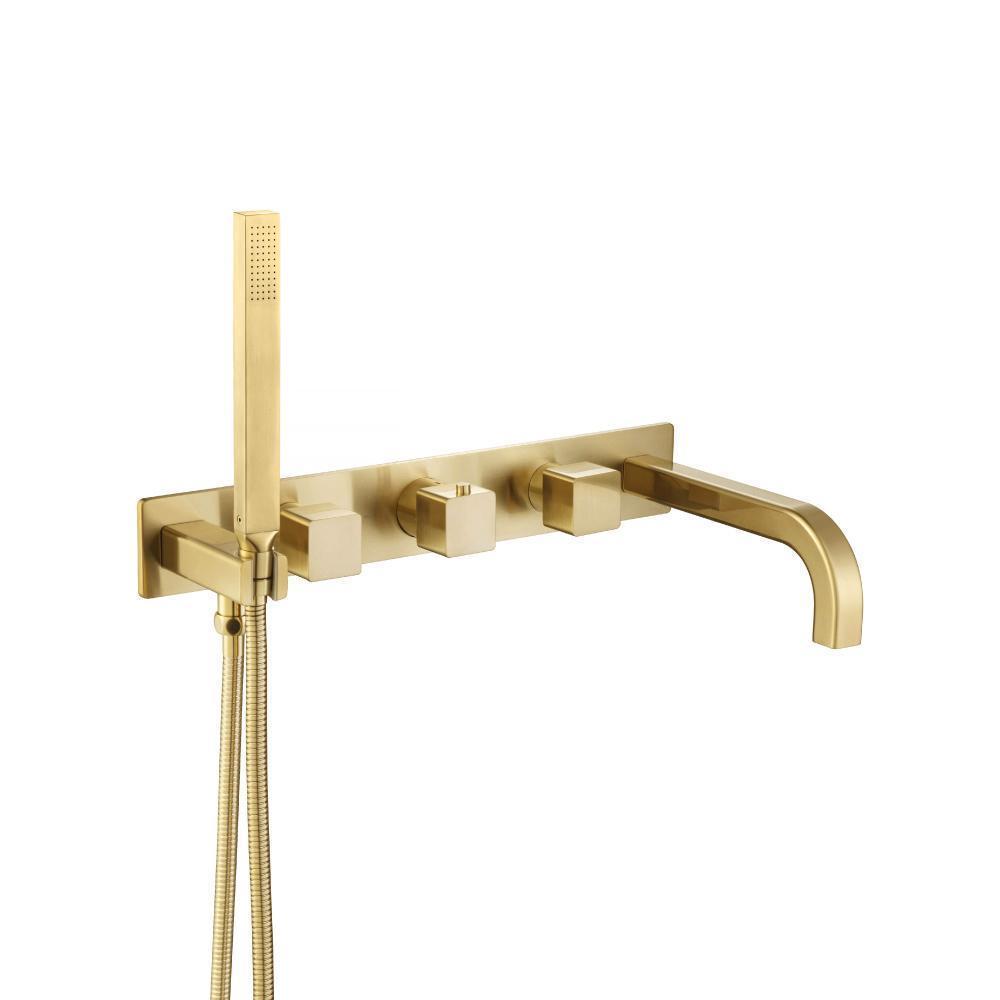

Trim For Wall Mount Tub Filler With Hand Shower
Model#: 196.2691TSB - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Valve Not Included - Trim Only
- 2 Output Ports
- Hand Shower Flow Rate Limited to 1.8 GPM
- Hand Shower & Tub Spout positions can be swapped
- Extension Available - Part # TVH.2691E**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Satin Brass PVD (FAST SHIP FINISH) - 20+ In Stock - List Price USD 1,373.00
Flusso’s 2691 trims sets allow for simultaneous operation between the spout and hand held and are used for tub fill application. This product is to be paired with the TVH.2691 valve.
HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
CUT OUT DIMENSIONS – The cut out in the wall should be 16.41” X 1.85” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
CUT OUT DIMENSIONS – The cut out in the wall should be 16.41” X 1.85” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 196 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| 196.2691TCP | Chrome | USD996.00 |
| 196.2691TBN | Brushed Nickel PVD | USD1,258.00 |
| 196.2691TPN | Polished Nickel PVD | USD1,258.00 |
| 196.2691TMB | Matte Black | USD1,373.00 |
| 196.2691TSB | Satin Brass PVD | USD1,373.00 |
| 196.2691TDR | Deep Red | USD2,023.00 |
| 196.2691TLG | Leaf Green | USD2,023.00 |
| 196.2691TDT | Dark Tan | USD2,023.00 |
| 196.2691TGMG | Gun Metal Grey | USD2,023.00 |
| 196.2691TLT | Light Tan | USD2,023.00 |
| 196.2691TNB | Navy Blue | USD2,023.00 |
| 196.2691TFG | Flusso Green | USD2,023.00 |
| 196.2691TAG | Army Green | USD2,023.00 |
| 196.2691TVB | Vortex Brown | USD2,023.00 |
| 196.2691TLV | Light Verde | USD2,023.00 |
| 196.2691TDGR | Dark Green | USD2,023.00 |
| 196.2691TCR | Crimson | USD2,023.00 |
| 196.2691TRG | Rock Grey | USD2,023.00 |
| 196.2691TDG | Dark Grey | USD2,023.00 |
| 196.2691TBP | Blue Platinum | USD2,023.00 |
| 196.2691TSKB | Sky Blue | USD2,023.00 |
| 196.2691TSG | Steel Grey | USD2,023.00 |
| 196.2691TGB | Gloss Black | USD2,023.00 |
Product Docs:
Spec
Sheet
Installation VideoProduct Info:
| Material | Brass |
| Valve | Not Included |
| Handles | Included |
| Number Of Handles | 3 |
| Anti-Scald Feature | Included |
| Hose | Included |
| Spout Reach | 8.8" |
| Handle Style | Knob |
