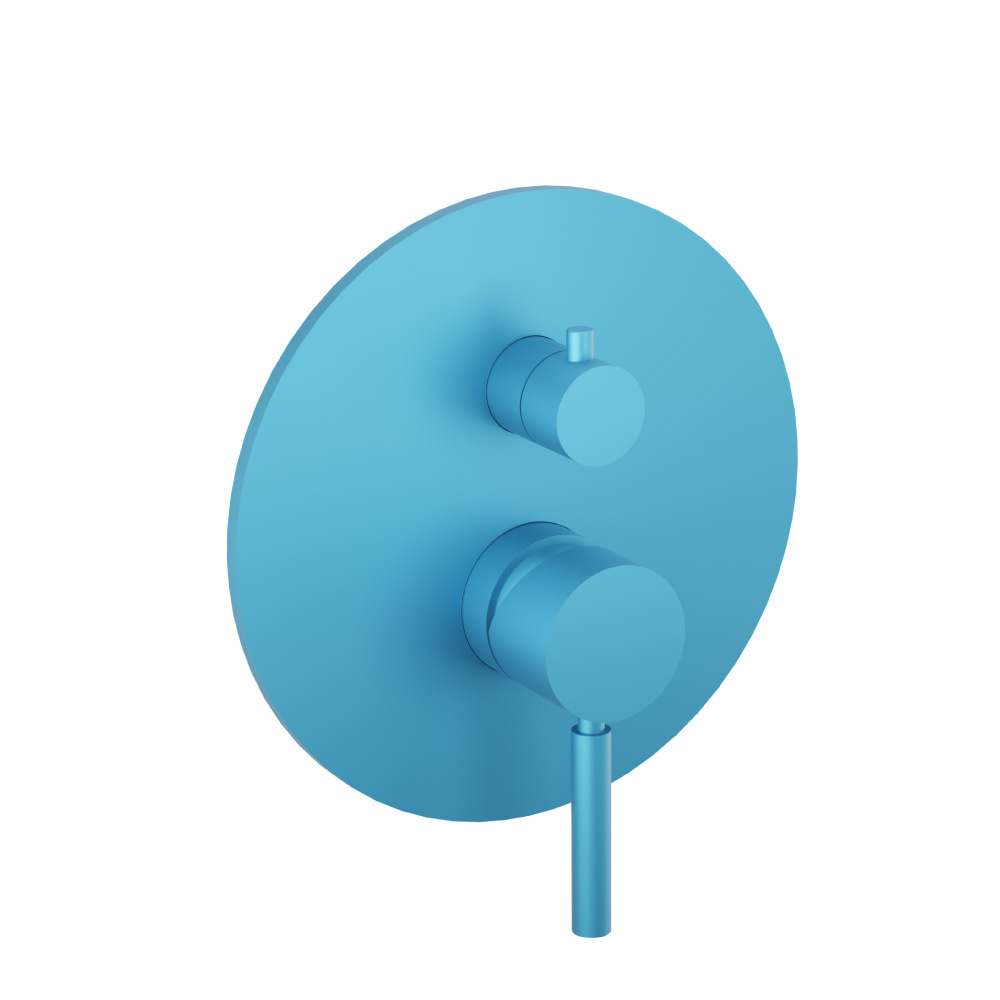

Tub / Shower Trim With Pressure Balance Valve - 3-Output
Model#: UF.2106SKB - VIEW THE WHOLE COLLECTION
Tub / Shower Trim With Pressure Balance Valve - 3-Output
Model#: UF.2106SKB - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Includes Pressure Balance Valve w/ Service Stops
- Single lever controls temperature & volume
- Extension Available - PBV.2100E**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Sky Blue (SPECIAL FINISH) - 8 Week Lead Time - List Price USD 979.00
The PBV.2105 – Pressure Balance valve with integrated 3-output diverter has a ½” NPT male connection with two inputs for hot/cold water and three output ports. The valve has a flow rate of 5.5 GPM @ 60 PSI.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the three outputs of the valve.
Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV.2105 consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100T or *2101T or *2102T series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the three outputs of the valve.
Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV.2105 consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100T or *2101T or *2102T series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 100 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| UF.2106CP | Chrome | USD829.00 |
| UF.2106BN | Brushed Nickel PVD | USD870.00 |
| UF.2106MB | Matte Black | USD870.00 |
| UF.2106SB | Satin Brass PVD | USD870.00 |
| UF.2106DR | Deep Red | USD979.00 |
| UF.2106LG | Leaf Green | USD979.00 |
| UF.2106DT | Dark Tan | USD979.00 |
| UF.2106GMG | Gun Metal Grey | USD979.00 |
| UF.2106LT | Light Tan | USD979.00 |
| UF.2106NB | Navy Blue | USD979.00 |
| UF.2106FG | Flusso Green | USD979.00 |
| UF.2106AG | Army Green | USD979.00 |
| UF.2106VB | Vortex Brown | USD979.00 |
| UF.2106LV | Light Verde | USD979.00 |
| UF.2106DGR | Dark Green | USD979.00 |
| UF.2106CR | Crimson | USD979.00 |
| UF.2106RG | Rock Grey | USD979.00 |
| UF.2106DG | Dark Grey | USD979.00 |
| UF.2106BP | Blue Platinum | USD979.00 |
| UF.2106SKB | Sky Blue | USD979.00 |
| UF.2106SG | Steel Grey | USD979.00 |
| UF.2106GB | Gloss Black | USD979.00 |
Product Docs:
Spec
Sheet
Installation Video
