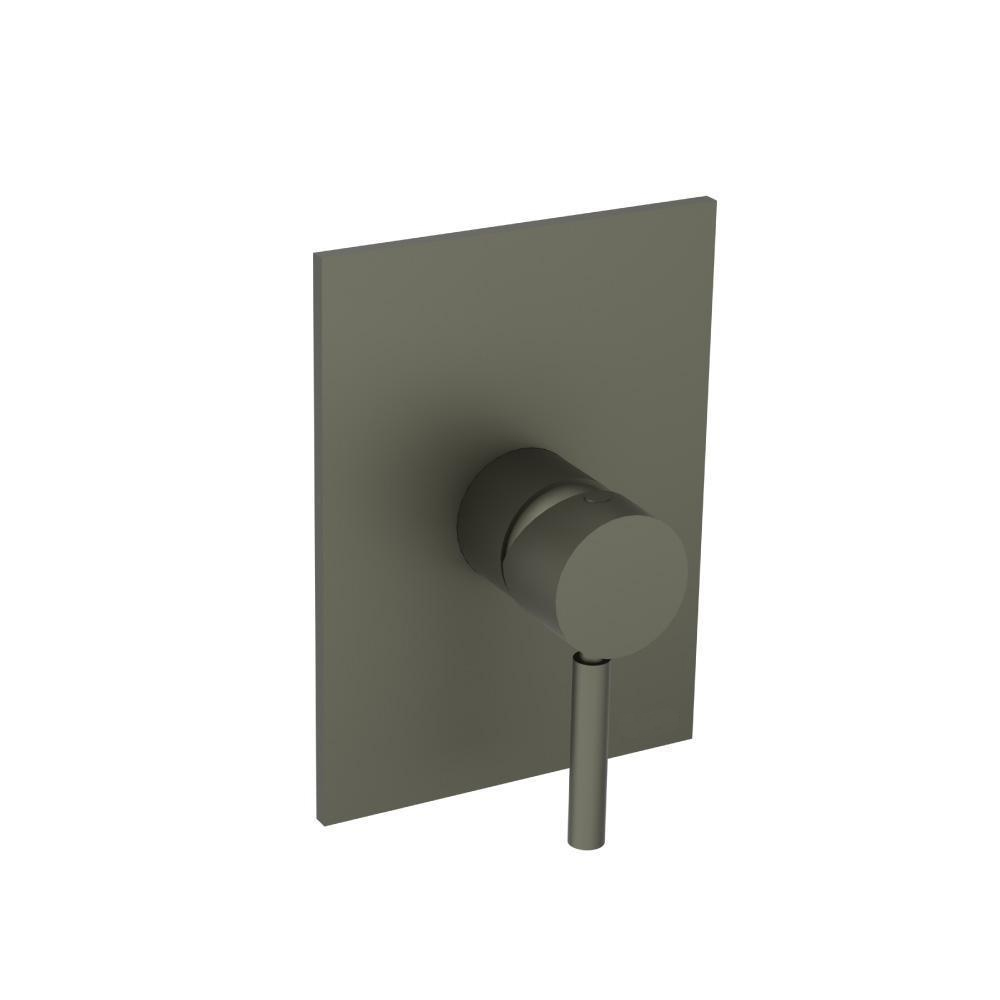

Shower Trim & Handle - Use With PBV1005AS
Model#: UF.2200TDGR - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Valve Not Included - Trim Only
- Use With PBV1005AS Valve
- Extension Available - PBV.2100E**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Dark Green (SPECIAL FINISH) - 8 Week Lead Time - List Price USD 397.00
TO BE USED WITH PBV1005AS PRESSURE BALANCE VALVE
Handle Operation - The volume and temperature of water is controlled by the single handle. Lift the handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water.
Cut Out Dimensions - The cut out in wall should be 4.60” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV1005AS consists of a trim plate and handle knob. The trim plate has markings for HOT/COLD. An extension kit can be ordered separately in case the handles need to be extended for proper fit. Any trim ending in *2200 or *2201 can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
<
Handle Operation - The volume and temperature of water is controlled by the single handle. Lift the handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water.
Cut Out Dimensions - The cut out in wall should be 4.60” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV1005AS consists of a trim plate and handle knob. The trim plate has markings for HOT/COLD. An extension kit can be ordered separately in case the handles need to be extended for proper fit. Any trim ending in *2200 or *2201 can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
<
| Collection | Serie 100 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| UF.2200TCP | Chrome | USD258.00 |
| UF.2200TBN | Brushed Nickel PVD | USD297.00 |
| UF.2200TMB | Matte Black | USD297.00 |
| UF.2200TSB | Satin Brass PVD | USD297.00 |
| UF.2200TBB | Brushed Bronze PVD | USD297.00 |
| UF.2200TDR | Deep Red | USD397.00 |
| UF.2200TLG | Leaf Green | USD397.00 |
| UF.2200TDT | Dark Tan | USD397.00 |
| UF.2200TGMG | Gun Metal Grey | USD397.00 |
| UF.2200TLT | Light Tan | USD397.00 |
| UF.2200TNB | Navy Blue | USD397.00 |
| UF.2200TFG | Flusso Green | USD397.00 |
| UF.2200TAG | Army Green | USD397.00 |
| UF.2200TVB | Vortex Brown | USD397.00 |
| UF.2200TLV | Light Verde | USD397.00 |
| UF.2200TDGR | Dark Green | USD397.00 |
| UF.2200TCR | Crimson | USD397.00 |
| UF.2200TRG | Rock Grey | USD397.00 |
| UF.2200TDG | Dark Grey | USD397.00 |
| UF.2200TBP | Blue Platinum | USD397.00 |
| UF.2200TSKB | Sky Blue | USD397.00 |
| UF.2200TSG | Steel Grey | USD397.00 |
| UF.2200TGB | Gloss Black | USD397.00 |
Product Docs:
Spec
Sheet
Installation VideoProduct Info:
| Handle Style | Lever |
| Material | Brass |
| Number Of Handles | 1 |
| Handles Included | Yes |
| Installation Type | Wall Mounted |
| Valve | Not Included |
