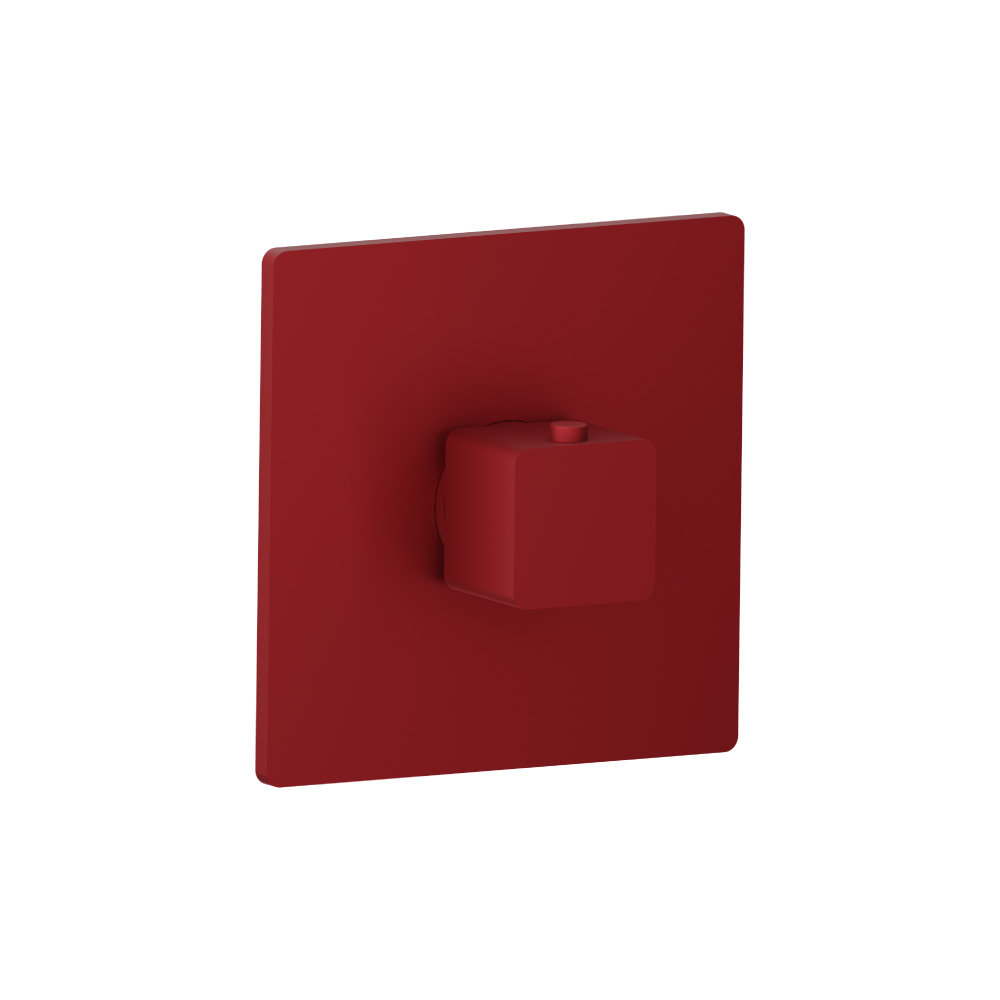

Trim For 3/4" Thermostatic Valve - Use with TVH.4201
Model#: 196.4201TCR - VIEW THE WHOLE COLLECTION
Trim For 3/4" Thermostatic Valve - Use with TVH.4201
Model#: 196.4201TCR - VIEW THE WHOLE COLLECTION
- Solid Brass Valve & Trim
- Extension Available - TVH.E185**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Crimson (SPECIAL FINISH) - 8 Week Lead Time - List Price USD 577.00
Handle Operation - The handle is used to control temperature of water flowing through the outlet. This handle does not control the volume of water flowing through the valve.
Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Cut Out Dimensions - The cut out in wall should be 2.67” X 4.44” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of well finished trim plate and handle. The trim plate is used to cover the wall and has markings for HOT/COLD for temperature control handle. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 196 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| 196.4201TCP | Chrome | USD268.00 |
| 196.4201TBN | Brushed Nickel PVD | USD321.00 |
| 196.4201TPN | Polished Nickel PVD | USD321.00 |
| 196.4201TMB | Matte Black | USD346.00 |
| 196.4201TSB | Satin Brass PVD | USD334.00 |
| 196.4201TDR | Deep Red | USD577.00 |
| 196.4201TLG | Leaf Green | USD577.00 |
| 196.4201TDT | Dark Tan | USD577.00 |
| 196.4201TGMG | Gun Metal Grey | USD577.00 |
| 196.4201TLT | Light Tan | USD577.00 |
| 196.4201TNB | Navy Blue | USD577.00 |
| 196.4201TFG | Flusso Green | USD577.00 |
| 196.4201TAG | Army Green | USD577.00 |
| 196.4201TVB | Vortex Brown | USD577.00 |
| 196.4201TLV | Light Verde | USD577.00 |
| 196.4201TDGR | Dark Green | USD577.00 |
| 196.4201TCR | Crimson | USD577.00 |
| 196.4201TRG | Rock Grey | USD577.00 |
| 196.4201TDG | Dark Grey | USD577.00 |
| 196.4201TBP | Blue Platinum | USD577.00 |
| 196.4201TSKB | Sky Blue | USD577.00 |
| 196.4201TSG | Steel Grey | USD577.00 |
| 196.4201TGB | Gloss Black | USD577.00 |
Product Docs:
Spec
Sheet
Installation VideoProduct Info:
| Material | Brass |
| Valve | Not Included |
| Handles | Included |
| Number Of Handles | 1 |
| Anti-Scald Feature | Included |
| Handle Style | Knob |
