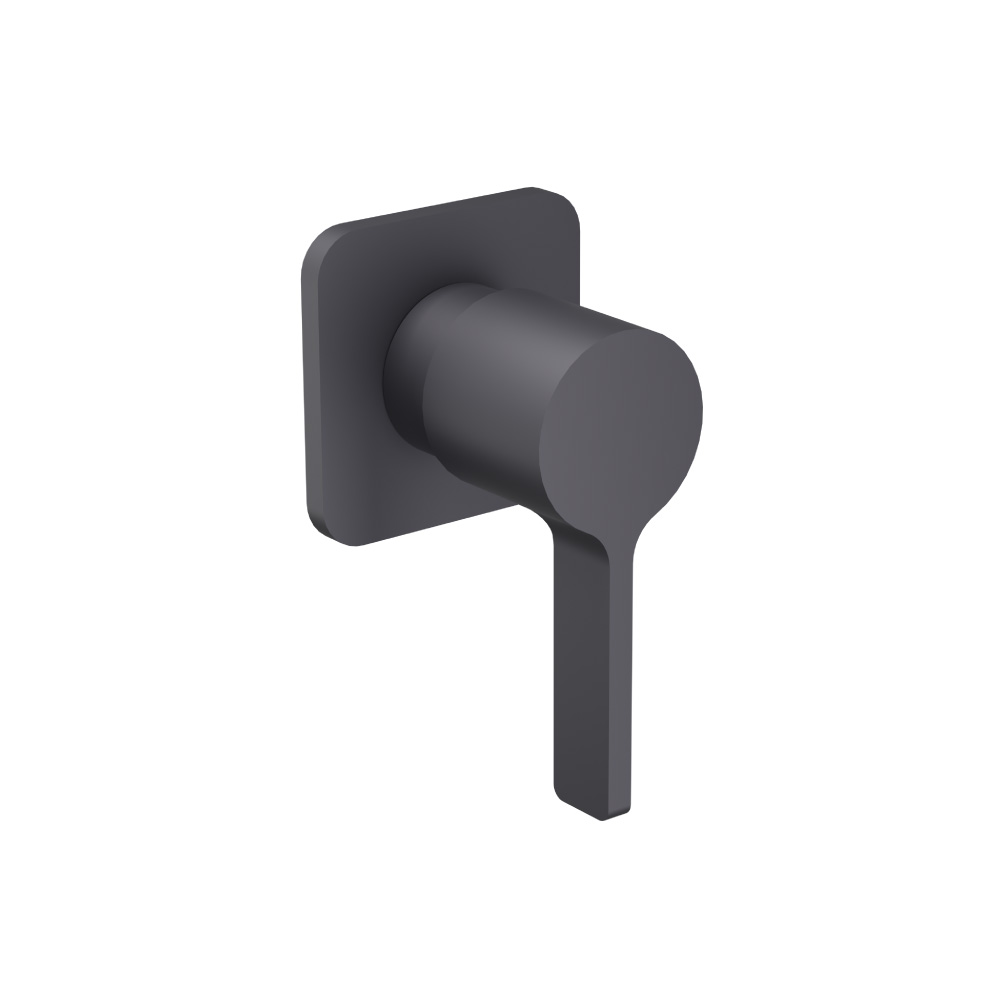

Trim For Volume Control
Model#: 260.4511TDG - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- For Use with TVH.4511, TVH.4371
- Valve Not Included - Trim Only
- Extension Available - TVH.E137
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Dark Grey (SPECIAL FINISH) - 8 Week Lead Time - List Price USD 345.00
TO BE USED WITH THE TVH.4511 OR TVH.4371 VALVE
Handle Operation – The handle of the *4511 trim set is used to control volume of water flowing through the valve. It can be used to set the water to a trickle all the way to full volume flow.
Valve Installation – This trim is paired with the TVH.4511 or the TVH.4371 valve. As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77″ and 3.44″. Also, the valve must be installed vertical and not at an angle. In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4511 valve is 1.40″ inches).
Cut Out Dimensions – The cut out in wall should be 1.65″ X 1.65″ inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Handle Operation – The handle of the *4511 trim set is used to control volume of water flowing through the valve. It can be used to set the water to a trickle all the way to full volume flow.
Valve Installation – This trim is paired with the TVH.4511 or the TVH.4371 valve. As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77″ and 3.44″. Also, the valve must be installed vertical and not at an angle. In case, a tile is thicker, or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4511 valve is 1.40″ inches).
Cut Out Dimensions – The cut out in wall should be 1.65″ X 1.65″ inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
| Collection | Serie 260 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| 260.4511TCP | Chrome | USD193.00 |
| 260.4511TBN | Brushed Nickel PVD | USD231.00 |
| 260.4511TPN | Polished Nickel PVD | USD231.00 |
| 260.4511TMB | Matte Black | USD257.00 |
| 260.4511TSB | Satin Brass PVD | USD257.00 |
| 260.4511TBB | Brushed Bronze PVD | USD257.00 |
| 260.4511TDR | Deep Red | USD345.00 |
| 260.4511TLG | Leaf Green | USD345.00 |
| 260.4511TDT | Dark Tan | USD345.00 |
| 260.4511TGMG | Gun Metal Grey | USD345.00 |
| 260.4511TLT | Light Tan | USD345.00 |
| 260.4511TNB | Navy Blue | USD345.00 |
| 260.4511TFG | Flusso Green | USD345.00 |
| 260.4511TAG | Army Green | USD345.00 |
| 260.4511TVB | Vortex Brown | USD345.00 |
| 260.4511TLV | Light Verde | USD345.00 |
| 260.4511TDGR | Dark Green | USD345.00 |
| 260.4511TCR | Crimson | USD345.00 |
| 260.4511TRG | Rock Grey | USD345.00 |
| 260.4511TDG | Dark Grey | USD345.00 |
| 260.4511TBP | Blue Platinum | USD345.00 |
| 260.4511TSKB | Sky Blue | USD345.00 |
| 260.4511TSG | Steel Grey | USD345.00 |
| 260.4511TGB | Gloss Black | USD345.00 |
Product Docs:
Spec
Sheet Product Info:
| Handle Style | Lever |
| Material | Brass |
| Handles | Included |
| Number Of Handles | 1 |
| Installation Type | Wall Mounted |
| Valve | Not Included |
