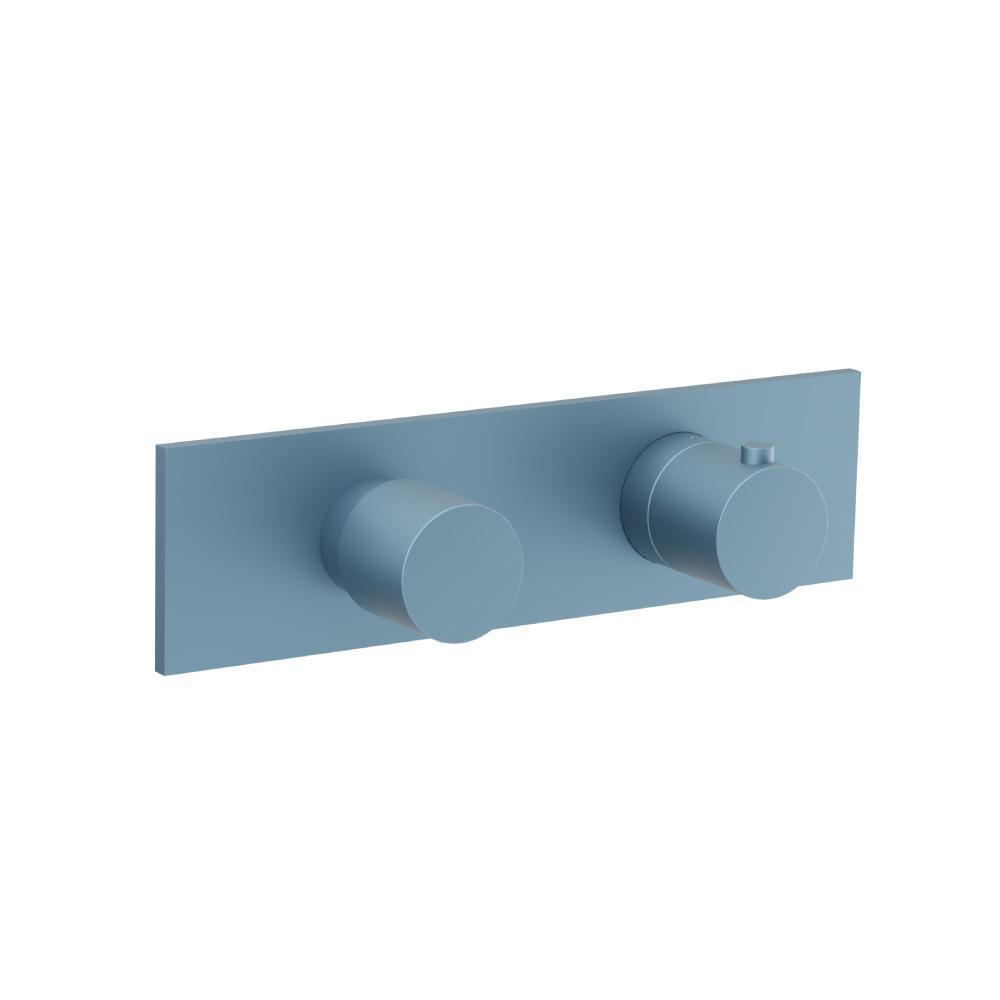

3/4" Horizontal Thermostatic Shower Valve & Trim - 2 Output
Model#: 100.2717BP - VIEW THE WHOLE COLLECTION
3/4" Horizontal Thermostatic Shower Valve & Trim - 2 Output
Model#: 100.2717BP - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.2717F
- With Integral Service Stops
- Two Output Ports
- Extensions Available - TVH.4101E**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Blue Platinum ( SPECIAL FINISH ) - 8 Week Lead Time - List Price USD 1,360.00
PRODUCT BREAKDOWN:
The TVH.2717F Thermostatic valve features 3/4″ NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation. This product meets CAL-Green compliance criteria. The right handle sets the temperature. The left handle controls water diversion between the 2 water output ports. Each port has full volume control capability.
HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2717F can be installed horizontally or vertically.
SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77″ and 3.44″ inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
CUT OUT DIMENSIONS – The cut out in wall should be 7.89″ x 1.89″ Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
CARTRIDGE – The TVH.2717F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
HORIZONTAL OR VERTICAL INSTALLATION – The TVH.2717F can be installed horizontally or vertically.
SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
HANDLE OPERATION – The right handle is used to control the temperature of water flowing through the outlet ports. The left handle is used to divert the water between each output port and is= capable of controlling the volume of water from full flow to a trickle.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. In order to adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
VALVE INSTALLATION -As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77″ and 3.44″ inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
CUT OUT DIMENSIONS – The cut out in wall should be 7.89″ x 1.89″ Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
CARTRIDGE – The TVH.2717F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
| Collection | Serie 100 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| 100.2717CP | Chrome | USD 1,155.00 |
| 100.2717BN | Brushed Nickel PVD | USD 1,194.00 |
| 100.2717MB | Matte Black | USD 1,245.00 |
| 100.2717SB | Satin Brass PVD | USD 1,220.00 |
| 100.2717BB | Brushed Bronze PVD | USD 1,220.00 |
| 100.2717LV | Light Verde | USD 1,360.00 |
| 100.2717SG | Steel Grey | USD 1,360.00 |
| 100.2717DT | Dark Tan | USD 1,360.00 |
| 100.2717DGR | Dark Green | USD 1,360.00 |
| 100.2717RG | Rock Grey | USD 1,360.00 |
| 100.2717LT | Light Tan | USD 1,360.00 |
| 100.2717IG | Isenberg Green | USD 1,360.00 |
| 100.2717VB | Vortex Brown | USD 1,360.00 |
| 100.2717DR | Deep Red | USD 1,360.00 |
| 100.2717GMG | Gun Metal Grey | USD 1,360.00 |
| 100.2717AG | Army Green | USD 1,360.00 |
| 100.2717DG | Dark Grey | USD 1,360.00 |
| 100.2717LG | Leaf Green | USD 1,360.00 |
| 100.2717NB | Navy Blue | USD 1,360.00 |
| 100.2717GB | Gloss Black | USD 1,360.00 |
| 100.2717BP | Blue Platinum | USD 1,360.00 |
| 100.2717SKB | Sky Blue | USD 1,360.00 |
| 100.2717CR | Crimson | USD 1,360.00 |
Product Docs:
Spec
Sheet
Installation VideoProduct Info:
| Connection Size | 3/4" Female |
| Integrated Volume Control | Yes |
| Valve Included | Yes |
| Valve Type | Thermostatic |
| Installation Type | Wall Mounted |
| Extensions Available | Yes |
| Material | Brass |
| Anti-Scald Ring | Included |
| Supply Stops | Included |
| Temperature Cartridge | TVH.4201-9853 |
| Diverter Cartridge Non-Shared | 15109 |
| Diverter Cartridge Shared | 15103 |
| Flow Rate | 8 GPM @ 60 PSI |
| Output Ports | 2 |
| Handle Style | Knob |
