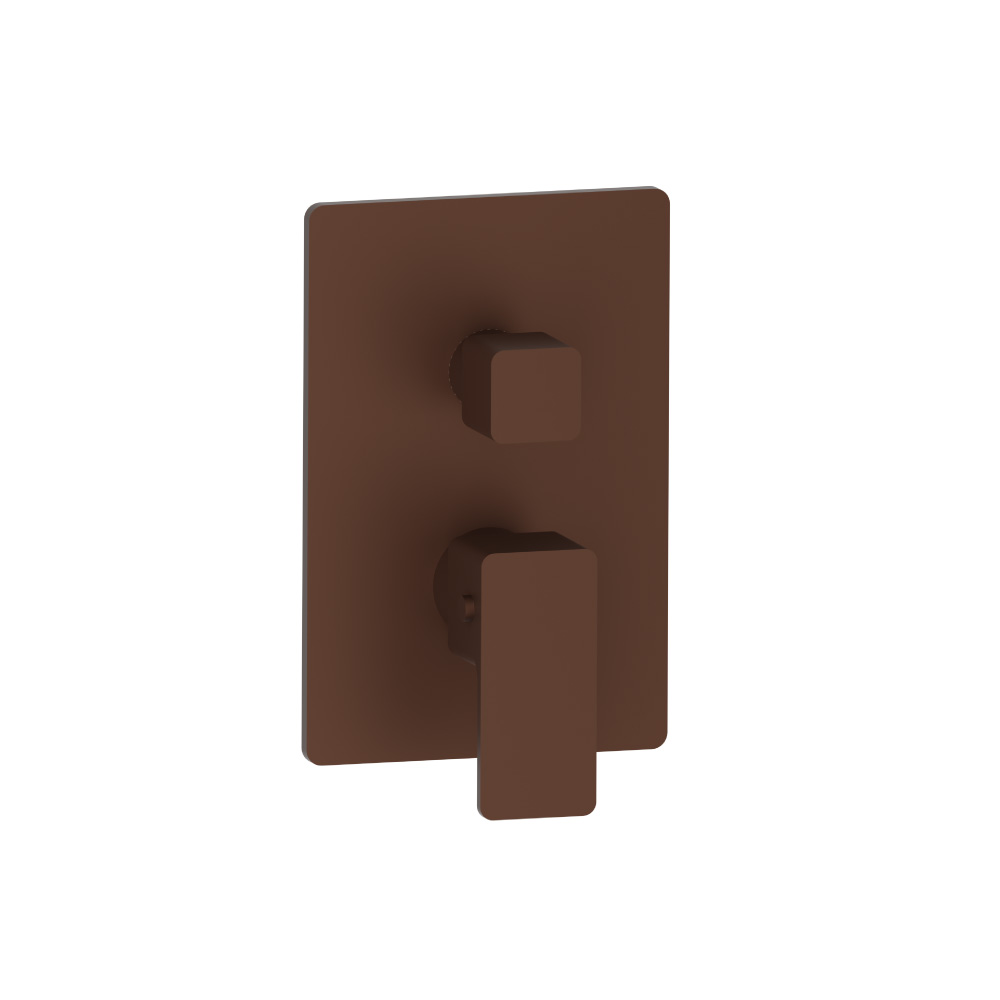

3/4 " Thermostatic Valve & Trim - With 2-Way Diverter - 2 Output
Model#: 196.4422VB - VIEW THE WHOLE COLLECTION
3/4 " Thermostatic Valve & Trim - With 2-Way Diverter - 2 Output
Model#: 196.4422VB - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4420F
- Valve Includes Integral Service Stops
- 2 Output Ports
- Extensions Available - TVH.4101E**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Vortex Brown (SPECIAL FINISH) - 8 Week Lead Time - List Price USD 1,409.00
PRODUCT BREAKDOWN:
The TVH.4420F Thermostatic valve features 3/4" female NPT connections and has 2 water output ports. This product meets CAL-Green Compliance. The bottom handle sets the temperature, and the top handle diverts water flow between the two output ports.
Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs.
Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position.
As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve is installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of a well finished cover plate and handle knobs. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the temperature handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Cartridge – The TVH.4420F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs.
Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position.
As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve is installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.
Trims - The trims comprise of a well finished cover plate and handle knobs. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the temperature handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Cartridge – The TVH.4420F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.
| Collection | Serie 196 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| 196.4422CP | Chrome | USD1,068.00 |
| 196.4422BN | Brushed Nickel PVD | USD1,143.00 |
| 196.4422PN | Polished Nickel PVD | USD1,143.00 |
| 196.4422MB | Matte Black | USD1,195.00 |
| 196.4422SB | Satin Brass PVD | USD1,195.00 |
| 196.4422DR | Deep Red | USD1,409.00 |
| 196.4422LG | Leaf Green | USD1,409.00 |
| 196.4422DT | Dark Tan | USD1,409.00 |
| 196.4422GMG | Gun Metal Grey | USD1,409.00 |
| 196.4422LT | Light Tan | USD1,409.00 |
| 196.4422NB | Navy Blue | USD1,409.00 |
| 196.4422FG | Flusso Green | USD1,409.00 |
| 196.4422AG | Army Green | USD1,409.00 |
| 196.4422VB | Vortex Brown | USD1,409.00 |
| 196.4422LV | Light Verde | USD1,409.00 |
| 196.4422DGR | Dark Green | USD1,409.00 |
| 196.4422CR | Crimson | USD1,409.00 |
| 196.4422RG | Rock Grey | USD1,409.00 |
| 196.4422DG | Dark Grey | USD1,409.00 |
| 196.4422BP | Blue Platinum | USD1,409.00 |
| 196.4422SKB | Sky Blue | USD1,409.00 |
| 196.4422SG | Steel Grey | USD1,409.00 |
| 196.4422GB | Gloss Black | USD1,409.00 |
Product Docs:
Spec
Sheet
Installation VideoProduct Info:
| Connection Size | 3/4" Female |
| Integrated Volume Control | Yes |
| Valve Included | Yes |
| Valve Type | Thermostatic |
| Installation Type | Wall Mounted |
| Extensions Available | Yes |
| Material | Brass |
| Anti-Scald Ring | Included |
| Supply Stops | Included |
| Temperature Cartridge | TVH.4201-9853 |
| Diverter Cartridge Non-Shared | 15109 |
| Diverter Cartridge Shared | 15103 |
| Flow Rate | 8 GPM @ 60 PSI |
| Output Ports | 2 |
