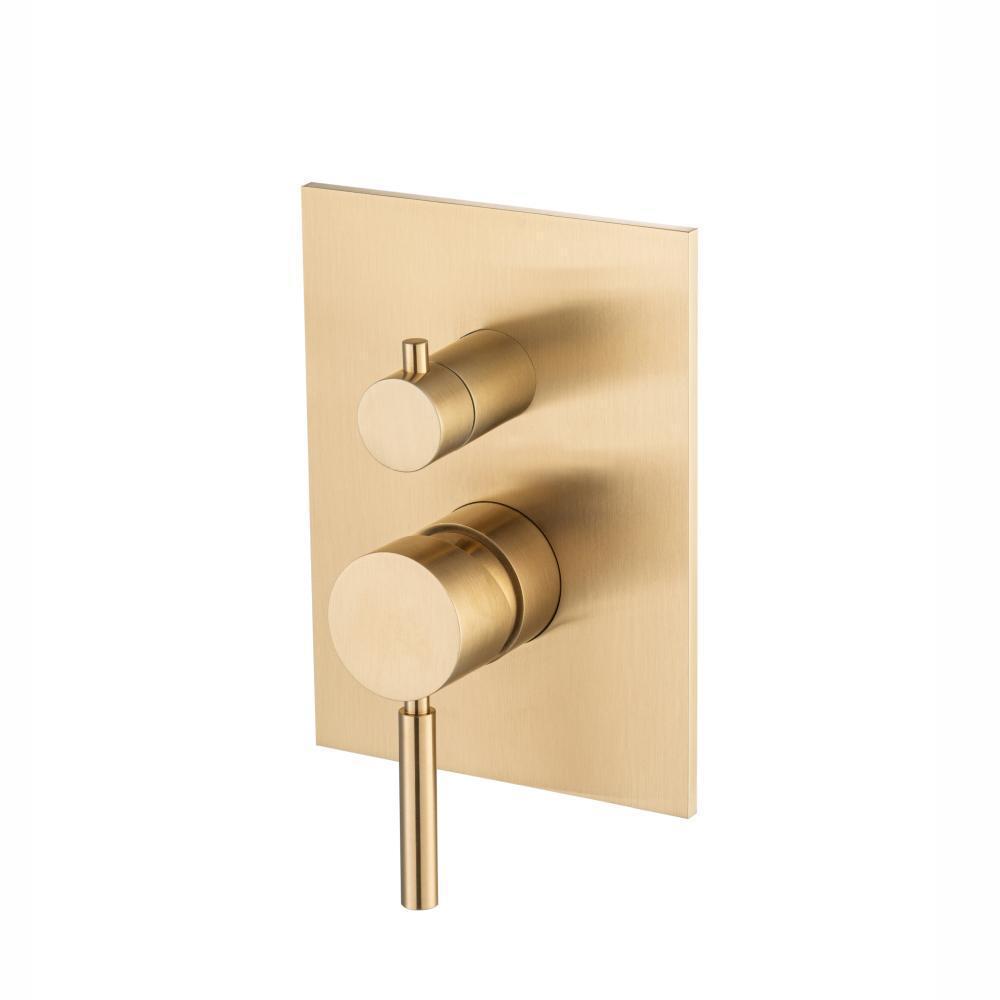

Tub / Shower Trim - 2-Output
Model#: UF.2100TBB - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Use With Pressure Balance Valve - PBV1005A
- Tub / Shower Trim - 2-Output
- Extension Available - PBV.2100E**
| FAST SHIP FINISH |
|
Brushed Bronze PVD ( FAST SHIP FINISH) - Out Of Stock - List Price USD 320.00
TO BE USED WITH PBV1005A PRESSURE BALANCE VALVE
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow.
Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow.
Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 100 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| UF.2100TCP | Chrome | USD 309.00 |
| UF.2100TBN | Brushed Nickel PVD | USD 354.00 |
| UF.2100TMB | Matte Black | USD 354.00 |
| UF.2100TSB | Satin Brass PVD | USD 354.00 |
| UF.2100TBB | Brushed Bronze PVD | USD 320.00 |
Product Docs:
Spec
Sheet
Installation VideoProduct Info:
| Material | Brass |
| Number Of Handles | 2 |
| Handles Included | Yes |
| Installation Type | Wall Mounted |
| Valve | Not Included |
| Handle Style | Lever |
