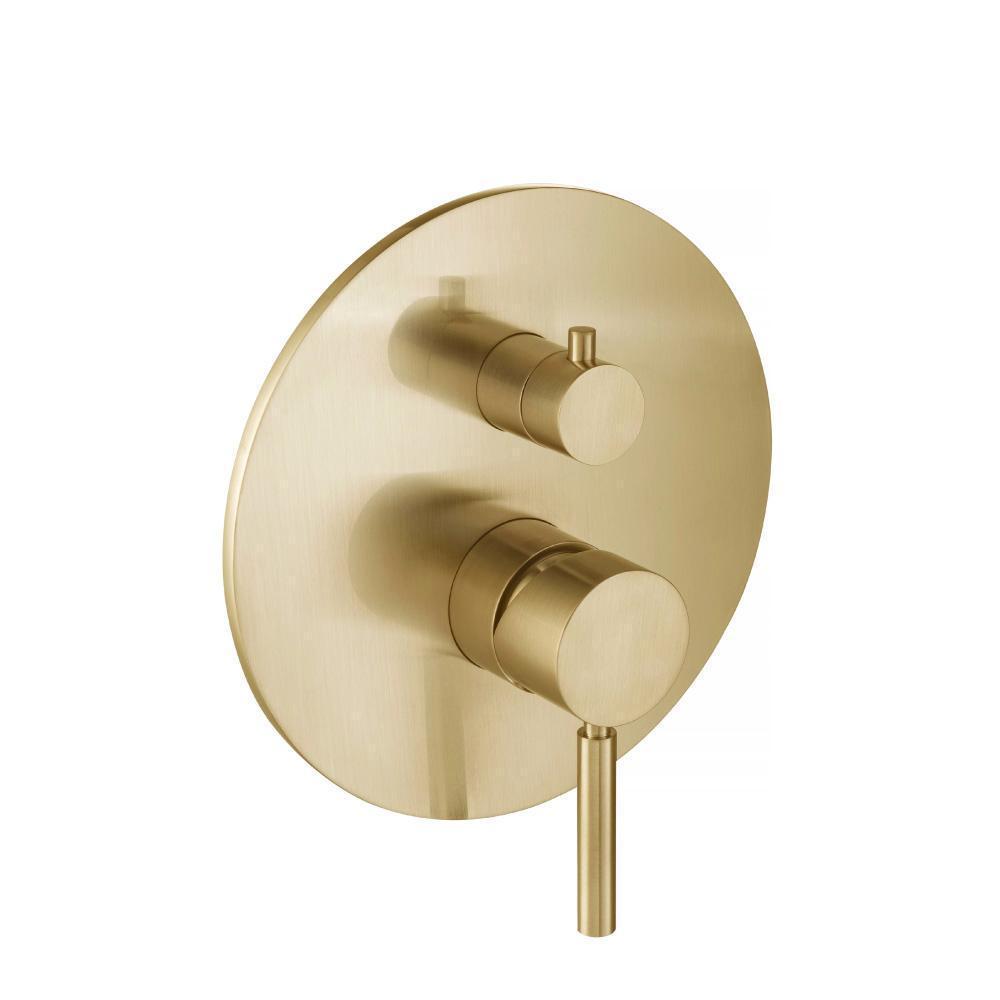

Tub / Shower Trim With Pressure Balance Valve - 2-Output
Model#: UF.2102SB - VIEW THE WHOLE COLLECTION
Tub / Shower Trim With Pressure Balance Valve - 2-Output
Model#: UF.2102SB - VIEW THE WHOLE COLLECTION
- Solid Brass Construction
- Includes Pressure Balance Valve w/ Service Stops
- Lift Handle to control Volume. Turn left for Hot. Right for Cold.
- Extension Available - PBV.2100E**
| FAST SHIP FINISH |
|
| SPECIAL FINISH |
|
Satin Brass PVD ( FAST SHIP FINISH) - 19 In Stock - List Price USD774.00
PRODUCT BREAKDOWN:
The PBV1005A – Pressure Balance valve with integrated 2-output diverter has a ½” NPT male connection with two inputs for hot/cold water and two output ports. The valve has a flow rate of 5.5 GPM @ 60 PSI.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow.
Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
Handle Operation - The volume and temperature of water is controlled by the lower handle. Lift the lower handle to control the volume and as the handle is moved between left and right, the temperature changes. Move it right for cold and left for hot water. The diverter handle on the top helps in directing the flow from the two outputs of the valve. When diverter handle points left, the water flows through the lower output. When the diverter handle points right, the top output is activated for water flow.
Cut Out Dimensions - The cut out in wall should be 5.43” x 4.76” Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
Trims - The trim set for PBV1005A consists of a trim plate and handle knobs for both top and bottom cartridge. The trim plate has markings for hot/cold. Extension kits for both handles can be ordered separately in case the handles need to be extended for proper fit. Any *2100 or *2101 series trim can be used with this valve. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 100 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Available Finishes:
| Model# | Finish | List Price (USD) |
|---|---|---|
| UF.2102CP | Chrome | USD734.00 |
| UF.2102BN | Brushed Nickel PVD | USD774.00 |
| UF.2102MB | Matte Black | USD774.00 |
| UF.2102SB | Satin Brass PVD | USD774.00 |
| UF.2102DT | Dark Tan | USD883.00 |
| UF.2102DGR | Dark Green | USD883.00 |
| UF.2102RG | Rock Grey | USD883.00 |
| UF.2102LT | Light Tan | USD883.00 |
| UF.2102IG | Flusso Green | USD883.00 |
| UF.2102VB | Vortex Brown | USD883.00 |
| UF.2102DR | Deep Red | USD883.00 |
| UF.2102LV | Light Verde | USD883.00 |
| UF.2102AG | Army Green | USD883.00 |
| UF.2102DG | Dark Grey | USD883.00 |
| UF.2102LG | Leaf Green | USD883.00 |
| UF.2102NB | Navy Blue | USD883.00 |
| UF.2102GB | Gloss Black | USD883.00 |
| UF.2102BP | Blue Platinum | USD883.00 |
| UF.2102SKB | Sky Blue | USD883.00 |
| UF.2102CR | Crimson | USD883.00 |
| UF.2102GMG | Gun Metal Grey | USD883.00 |
| UF.2102SG | Steel Grey | USD883.00 |
Product Docs:
Spec
Sheet
Installation Video
